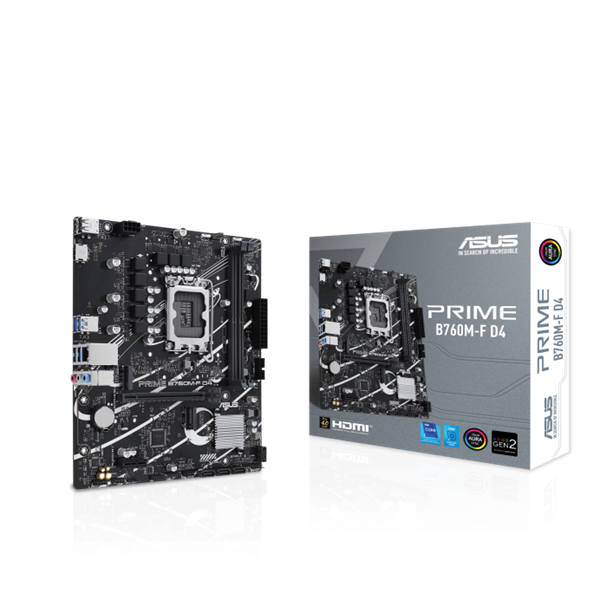

Mainboard ASUS Prime B760M-F D4

• ASUS PRIME B760M-F D4, an Intel^® B760 LGA 1700 micro-ATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 1Gb Ethernet, HDMI™, SATA 6 Gbps, front USB 5Gbps ports, Aura Sync

• Intel^® LGA 1700 Socket: Ready for 14^th, 13^th and 12^th Gen Intel^® processors
• Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 1Gb Ethernet and front USB 5Gbps support
• Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

• Model

  PRIME B760M-F D4

  CPU

  Intel^® Socket LGA1700 for Intel^® Core^™14^th & 13^th Gen Processors, Intel^® Core^™ 12^th Gen, Pentium^® Gold and Celeron^® Processors*
  Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list.
  ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Chipset

  Intel^® B760 Chipset

  Memory

  2 x DIMM slots, Max. 64GB, DDR4
  5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual channel memory architecture
  Supports Intel^® Extreme Memory Profile (XMP) memory module
  * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

  Graphics

  1 x HDMI^™ port
  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports 4K@30Hz as specified in HDMI 1.4.

  Expansion Slots

  Intel^® Core^™ Processors (14^th  & 13^th & 12^th Gen)
  1 x PCIe 4.0 x16 slot
  Intel^® B760 Chipset
  1 x PCIe 4.0 x1 slot
  - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

  Storage

  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel^® Core^™ Processors (14^th  & 13^th & 12^th Gen)
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel^® B760 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  * Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

  Ethernet

  1 x Realtek 1Gb Ethernet

  USB

  Rear USB (Total 6 ports)
  4 x USB 5Gbps ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)*
  Front USB (Total 5 ports)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports

  Audio

  Realtek 7.1 Surround Sound High Definition Audio CODEC*
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback
  Audio Features
  - Audio Shielding
  - Premium audio capacitors
  - Dedicated audio PCB layers
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

  Back Panel I/O Ports

  4 x USB 5Gbps ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x HDMI^™ port
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks

  Internal I/O Connectors

  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage Related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front panel audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header

  Special Features

  ASUS 5X PROTECTION III
  - DIGI+ VRM
  - LANGuard
  - Overvoltage protection
  - SafeSlot Core
  - Stainless-steel back I/O
  ASUS Q-Design
  - Q-DIMM
  - Q-LED Core
  - Q-Slot
  ASUS EZ DIY
  - ProCool
  ASUS Thermal Solution
  - Aluminum heatsink design
  Aura Sync
  - Addressable Gen 2 headers

  Software Features

  ASUS Exclusive Software
  Armoury Crate
  - Aura Sync
  - Fan Xpert
  - Power Saving
  - Two-Way AI Noise Cancelation
  AI Suite 3
  - DIGI+ VRM
  - PC Cleaner
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode

  BIOS

  128 Mb Flash ROM, UEFI AMI BIOS

  Manageability

  WOL by PME, PXE

  Accessories

  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O shield
  2 x M.2 anchors
  Documentation
  1 x Quick start guide

  Operating System

  Windows^® 11, Windows^® 10 64-bit

  Form Factor

  micro-ATX Form Factor
  9.6 inch x 8.3 inch (24.4cm x 21.1cm)
